    Poultry Greenhouse Cooling Fans Negative Pressure 1380mm Plant Growing

    Ask Lasest Price
    Brand Name : BAOLIDA
    Model Number : BAOLIDA-09
    Certification : ISO9001:2008
    Price : USD 50-200/set
    Payment Terms : MoneyGram, Western Union, T/T, D/P, D/A
    Supply Ability : 30000 SETS A MONTH
    Delivery Time : 7-10 DAYS
    • Product Details
    • Company Profile

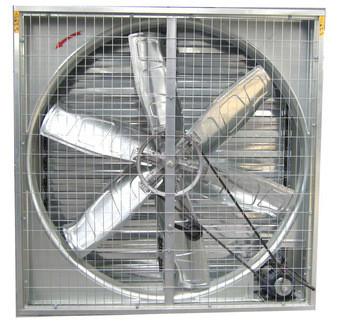

    Poultry Greenhouse Cooling Fans Negative Pressure 1380mm Plant Growing


    Negative Pressure 1380mm Cooling Fan For Greenhouse/ Poultry Greenhouse Cooling System


    Description


    Negative Pressure cooling fan for greenhouse/ poultry
    Main materials: Stainless steel; Hot galvanized sheet
    Application: Greenhouse, Poultry house, Dairy farm, Industrial use etc.
    Advantages: There is a centrifugal pushpull device, which make shutters open up completely and keep it constantly no matter what the pressure is in the house. So the larger and steady air volume is caused.


    1, Fan:6 stainless steel blade is beautiful and durable,through dynamic balance test,large volume and low noise,no deformation,no fracture.
    2, Frame:high quality thick galvanized plate,high strenght,strong corrosion resistance.Can do spray treatment according to user needs.
    3, PulleyLhigh strength aluminum magnesium alloy hot molding,light weight,high strength.
    4, Bearing:France imported bearing,high strenght,low noise,long service life


    Parameter


    Ordinary Negative pressure fan
    ModelDimension(mm)The weightAir flow (m3/h)Motor(380v)/KWTotal pressure(Pa)Noise decibels(db)Voltage(V)
    400400*400*37045000.2545≤80380/220
    480480*480*37060000.2550≤75380/220
    600600*600*37016.5180000.3755≤70380/220
    710800*800*37024.5210000.3755≤70380/220
    800900*900*37028.5280000.5560≤60380/220
    9001000*1000*37030290000.5565≤65380/220
    10001100*1100*37035300000.7570≤70380/220
    11001220*1220*37042360000.7570≤70380/220
    12501380*1380*37050420001.170≤70380/220
    14001530*1530*37060520001.570≤70380/220
    heavy hammer type negative pressure fan
    710800*800*40028.5220000.3755≤70380/220
    800900*900*40033.5280000.5560≤60380/220
    9001000*1000*40036300000.5565≤65380/220
    10001100*1100*40042.5325000.7570≤70380/220
    11001220*1220*40050380001.170≤70380/220
    12501380*1380*40058.5440001.170≤70380/220
    12501380*1380*40058.5440001.170≤70380/220
    12501380*1380*40058.5440001.170≤70380/220
    14001530*1530*40065550001.570≤70380/220
    Push-pull negative pressure fan
    9001000*1000*450350000.7565≤65380/220
    12501380*1380*450480001.170≤70380/220
    14001530*1530*450570001.570≤70380/220

    Cooling Pad For Poultry Farming or Greenhouse

    Cooling Pad, also called wet pad, made of hydrophil kraft paper, is mainly used for the cooling system, humidification system and filter system. The process includes gluing, drying, corrugating, shaping, solidifying, cutting and polishing. Common specifications are 7090, 7060 and 5090 with 45 * 45 angle. Special sizes or dimensions need made or required individually. Water Evaporative Cooling Pad is widely used for greenhouse,industrial workshop...etc, having good effect on ventilation normally equipped with exhaust fan.

    Poultry Greenhouse Cooling Fans Negative Pressure 1380mm Plant GrowingPoultry Greenhouse Cooling Fans Negative Pressure 1380mm Plant GrowingPoultry Greenhouse Cooling Fans Negative Pressure 1380mm Plant Growing







    1. When can I get the price?
    Usually within 24 hours after we get your inquiry. If you are urgent to get the price, please call me or tell me in the email.
    2. Can you accept our own design, logo, and pattern?
    We can produce it according to your design.
    3. Are you a manufacturer or Trading company?
    We are a greenhouse manufacturer in Chengdu China, are greenhouse manufacturing, and We also welcome you to visit our factory.
    4. When can I get the goods?
    Produce time is within 15 days, and shipping is usually 20-35days.
    5. What is your best price?
    The same style of greenhouse can be used in different thicknesses of steel, and different thicknesses of film. These will have a direct impact on greenhouse prices. And the larger the area, the lower the unit price will be
