Agriculture Vegetable Growing Hoop House Low Cost Agriculture
Greenhouse Film Tunnel Greenhouse
Product describe:
The tomato and cucumber structure of the polyethylene single-span
greenhouse is suitable for planting tomato and cucumber in large
areas. The land utilization rate is very high. After installation,
it can be centralized management, with high efficiency. Combined
with irrigation, cooling, shading and heating systems, it can
effectively control the internal environment of greenhouse gases
and provide an appropriate environment for crop growth. Get better.
Greenhouse Framework:
Our greenhouse frame is a hot-dip galvanized steel structure; it is
a stable high-strength structure; the assembly style is no welding
and excellent corrosion resistance; the size of the steel frame can
be customized by design; steel is a high-quality material with
strong resistance. With age, steel has a long service life and the
frame is easy to assemble.
| ITEM | PARAMETER |
| Type | Small spire top or round top |
| Greenhouse Length | 16m-120m or customized |
| Greenhouse Width | 20m-60m or customized |
| Width Of Each Span | 8m/9.6m/12m for option or customized |
| Spires No.for each span | 3 PCS |
| Total Height | 4.8-5.3m customized |
| Bay | 4m |
| Covering material | Reinforced Plastic Film |
Ventilation Requirements For Option | Top or side ventilation |
| Basic equipment | Frame structure,top ventilation or both sides ventilation, electrical power distribution |
Supporting system (choose according to your needs) | Cooling system, electrical outside shading net & inside shading & irrigation system for option |
Greenhouse Covering:
This type of greenhouse choose Clear PE film as the covering
material; Thickness could be 0.08mm,0.12mm,0.15mm,0.2mm; Cover the greenhouse with the film of 1 or 2 layers; Has the
function of dust-proof and anti-dripping; To reduce water evaporation in soil; UV block
treatment; Cost very few, easy to install and maintain.
| Name | Thickness | Guarantee period | Types |
| Plastic Film | 0.06mm | 14 month |
PE
PO |
| 0.08mm | 18 month |
| 0.10mm | 2 years |
| 0.12mm | 3 years |
| 0.15mm | 4 years |
| 0.20mm | 5 years |
Greenhouse Ventilation:
The ventilation system can be the most necessary system of a
greenhouse, it can keep aircirculation in the greenhouse and will
effectively prevent pests and diseases of the crops because of the
anti-insect net.Manual ventilation system,this system consists of
manual roller, roller pipe,roller climbing rod, 40 mesh anti-insect
net, etc.Motor-driven ventilation system is consist of electric
motor, transmission rolling system, roller pipe, 40 mesh
anti-insect net, etc.

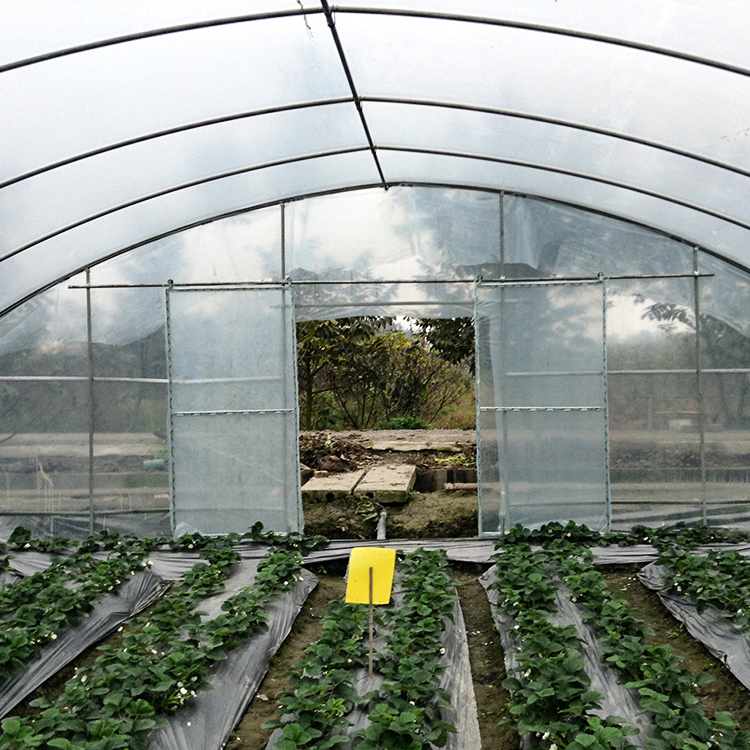

Tunnel greenhouse advantage
Tunnel greenhouse is a simplest structure greenhouse with the
lowest cost and the most convenient installation. The framework is
the core structure of the tunnel greenhouse. It includes the
groove, the door, the ridge, the arch, the end column and so on.
The single span is usually between 6m to 12m .The advantage lies in
the maximum use of the land area, simple installation, strong
durability and long service life. In addition ,it is very
convenient to disassemble , install and transport .So the cost is
the lowest, but the most cost-effective one.
2. Tunnel greenhouse is one of the most simplest structure of
greenhouse. Greenhouse film is made of 100% new material PE with UV additives. It's strong ,long-life ,keep temperature and preserve moisture ,
promotion plants grow, protection fruit and vegetable.
3..This greenhouse is simply installed, is framed by galvanized tubes.
There is no upright column in the greenhouse, so it’s strengthening
the lighting effects and good for the mechanical operations,
promoting the land-utilizing ability.
