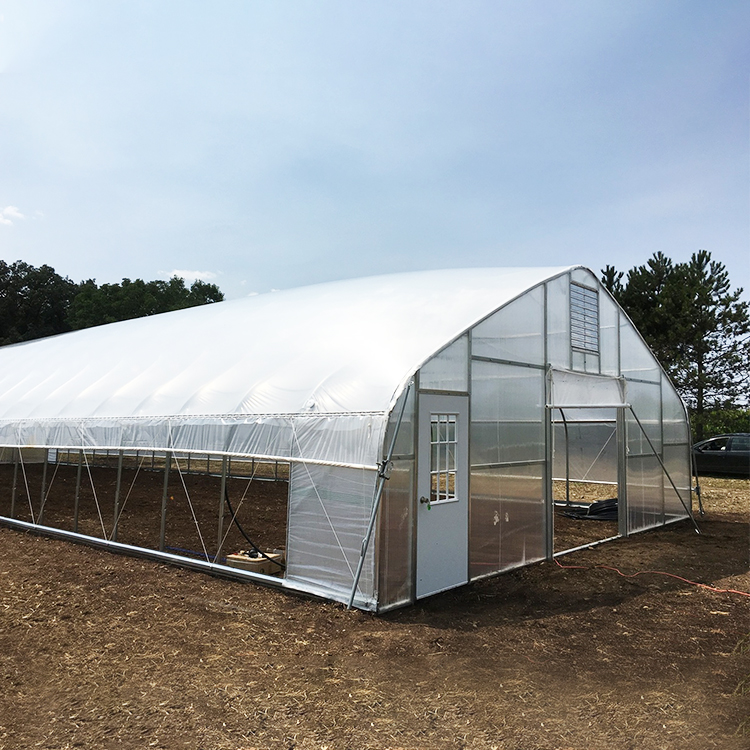

300 Square Meter Greenhouse Tunnel Plastic White Single-Span
Greenhouses For Strawberry Growing
Tunnel Plastic Greenhouse Product describe:
A greenhouse is the simplest structure greenhouse with the lowest
cost. The framework is the core structure of the tunnel greenhouse. It includes the groove, the door, the ridge, the arch, the end column and so on. The single-span is usually
between 6m to 12m. The advantage lies in the maximum use of the land area,
simple installation, strong durability and long service life. In addition, it is very convenient to disassemble, install and transport. So the cost is the lowest, but the most cost-effective one. It also refers to a room with cold protection, heating and light
transmission facilities for the cultivation of warm plants in
winter. In the season which is not suitable for plant growth, it
can provide the growth period and increase the yield. It is mostly
used for the cultivation or seedling cultivation of vegetables,
flowers, trees and other plants in the low- temperature season.
| Product Name | Gothic Arch Greenhouse |
| Material | Hot Dipped Galvanized Steel |
| Width | 30ft (9m) |
| Length | 100ft (30m) |
| Roof Height | 12ft |
| Arch | 48mm |
| Boom | 32mm |
| Covering Material | PE film 150microns |
| Door | 6.56*6.56ft (2*2m) |
| Ventilation System | Roll-up side ventilation by manual*2 |
| Wind Load | 0.4KN/M2 |
| Snow Load | 0.35KN/M2 |
| Max Rain Quantity | 140mm/h |
| Packing Size | 16.73*3.93*1.47ft (5.1*1.2*0.45m) |
| Production Time | 7 days |
Features | Simple structure and economic type |
| Structure is flexible, strong applicability and wide applicable
scope |
| High quality Lock Channel and Hot-dip Galvanization |
Covering Material
The gothic greenhouse is covered by 150 Micron PE film. It’s clear,
dust-proof with anti-dropping
design. The global light transmission is more than 90%. The UV
transmission is 300-390%. The lifespan is more than 5 years. It
would offer the best suitable growing environment to your plant
| Name | Thickness | Guarantee period | Types |
Plastic Film | 0.06mm | 14 month |
PVC; PE; EVA; PO
|
| 0.08mm | 18 month |
| 0.10mm | 2 years |
| 0.12mm | 3 years |
| 0.15mm | 4 years |
| 0.20mm | 5 years |
Galvanized Steel Frame
We use the galvanized steel tube as the greenhouse frame It’s more
strengthen, durable and stable than the regular steel. The
anti-corrosive design to confirm the long lifespan of greenhouse
structure. We could adjust the steel tube based on your project
location.
Door
Add style, security, and efficiency with a 2*2 meters greenhouse
door. Be sure to maintain proper greenhouse temperature and prevent
the insects.
Ventilation System
Two side ventilation systems by manual roller control. You can roll
them up and down to adjust the temperature in the greenhouse.
Meanwhile, the insect net will prevent pests effectively and
diseases of the crops.
All the details can be customized as your requirements, please
contact us.
Drip irrigation
It is the most effective way of water-saving irrigation for drought
and water shortage areas at present. The utilization rate of water
is up to 95%. And it can be applied to fruit trees, vegetables, cash crops and
greenhouse irrigation. Of course, it owns many advantages: such as, saving water;
irrigation uniformity; energy, soil and terrain adaptability;
convenient farm work, etc.
