Agricultural Plastic Single Span Kit House Tunnel Strawberry
Greenhouse Greenhouse For Sale
Description
Tunnel greenhouses are the cheapest and most economical form of
greenhouse, a design that inserts the structure directly into the
ground. In cold areas, the greenhouse can be used as a cold shed to
keep heat. In hot areas, can be used to grow vegetables, common
flowers, edible fungi, etc., for these plants to keep out the rain.
This greenhouse is suitable for growing almost any type of crop.
Especially suitable for pepper, cabbage, cucumber, watermelon,
strawberry, tomato and other common agricultural cash crops. This
kind of greenhouse has a variety of characteristics, economic and
efficient, drainage, good wind resistance. And its main material is
made of high quality steel, and we can customize it according to
your region and your actual situation. Without a doubt, this is the
perfect greenhouse for you. Therefore, it is especially popular in
many countries and regions of the world. In addition, the
greenhouse can also cooperate with the use of various agricultural
auxiliary systems, irrigation systems, hydroponic systems, lighting
systems, seedbed systems, so as to further improve agricultural
productivity.
Structure introduce
Tunnel design not only ensures the stability of greenhouse
structure, but also reduces the cost of processing. Manual film
winding design on both sides ensures air circulation in the
greenhouse. The ventilation area is set with a 40-purpose
insect-proof net, which can effectively prevent harmful organisms
from entering the greenhouse, ensure the safety of crops and
maintain the normal production of greenhouse crops. If it is to be
used for animal production, greenhouses need to be configured to a
higher standard. While the structure remains the same, both the
size of the basic skeleton material and the thickness of the steel
need to be strengthened. At the same time in order to keep warm,
the outermost part of the greenhouse also need to increase the
cotton quilt as the outermost insulation material, play the role of
heat preservation and insulation. There are two kinds of
ventilation: natural ventilation and forced ventilation. If forced
ventilation is selected, a cooling system is usually required. The
cooling system consists of a negative pressure fan and a water
curtain, which are located at the front and rear ends of the
greenhouse.
Covering Material
PE non-drop film uses non-ionic surfactant technology, which makes
it has excellent anti-fogging performance, shelf life is generally
1-5 years, which is basically the same as its anti-aging ability.
Our standard film thicknesses are 80 microns, 150 microns and 200
microns.
Parameter
| Item | Parameter | Remark |
| Product model | CD1-0 | Ventilation system and shading system can be added. |
| Standard size | W 8m, L 10m-60m | Accept Customized |
| Wall height | 1.5 meters | Accept Customized |
| Arch | φ25mm*1.5mm | Can be changed |
| wall column | φ25mm*1.5mm | Can be changed |
| Covering material | 80 / 150 micron | Can be changed |

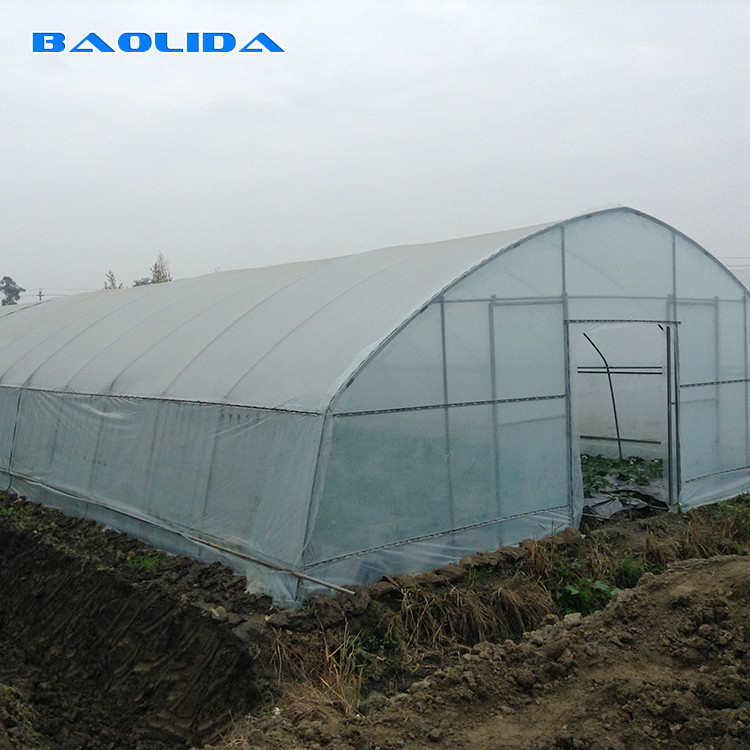

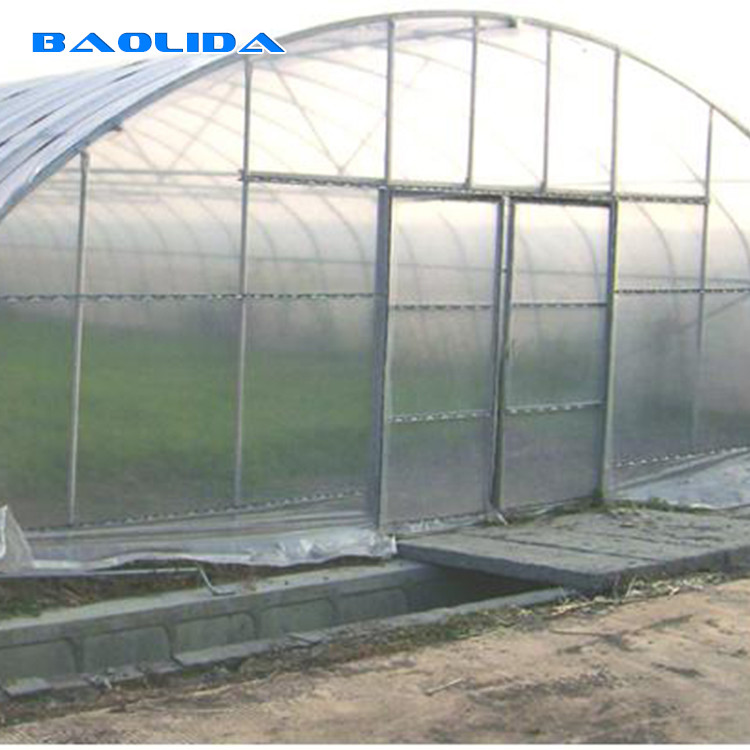

Examples of pictures
Transportation
Production
Certificate
Customer visit and praise
Service
1. We can design the most suitable greenhouse for you according to
your local climate and your needs.
2. We will give you a detailed quotation, so that you can clearly
see the composition of the price.
3. We provide a 5-year warranty service for steel pipes and a
3-year warranty service for covering materials.
4. we have a professional construction design team, can give you
the production of detailed construction drawings, at the same time
to give you remote technical guidance.
