Outer PE Film Internal Blackout Poly Cover Aluminum Zinc Plating
Process Single Span light Deprivation Greenhouse
Description
It is made of aluminized zinc steel with dark characteristics of
the greenhouse, suitable for planting or breeding some animals and
plants do not need light use. It is suitable for some cash crops or
flower plants that do not need special dark environment.
Structure introduce
The overall tunnel structure is divided into two layers of double
steel frame structure, the outer layer is covered with ordinary
greenhouse FILM, and the inner layer is Blackout Poly. The main
structural foundation needs steel frame concrete structure to
ensure the stability of the greenhouse. The shading system is
driven by a motor and is convenient and practical. The outer side
of the greenhouse is equipped with manual ventilation, which
effectively ensures air circulation and reduces input cost.
Ventilation with insect net, can effectively prevent the entry of
harmful organisms.
Covering Material
PE without drip film
It has good light transmittance, good heat preservation, no drop,
weather resistance, longevity and other functions, but also can
effectively block ultraviolet light, ultraviolet light through the
shed to reduce. It can inhibit the formation of ascomycetes and
conidiospores of sclerotia disease.
Blackout Poly
With high shading effect, shading rate up to 99%. The structure is
compact and strong, not easy to damage.
Parameter
| Item | Parameter | Remark |
| Product model | BLDBD1-0 | It can be equipped with cooling system. |
| Standard size | W 9m, L 10m-60m | Accept Customized |
| Top height | 4.5 meters | Accept Customized |
| Wall height | 2.5meters | Accept Customized |
Arch | φ48mm*1.5mm | Can be changed |
Top support rod | φ32mm*1.5mm | Can be changed |
Internal column | □50mm*50mm*1.5mm | Can be changed |
Internal beam | □30mm*50mm*1.5mm | Can be changed |
Internal longn | □30mm*50mm*1.5mm | Can be changed |
Outer beam | φ32mm*1.5mm | Can be changed |
Both two end column | □30mm*50mm*1.5mm | Can be changed |
Outer covering | 150 micron PE film | Can be changed |
Internal covering | Blackout Poly | Can be changed |

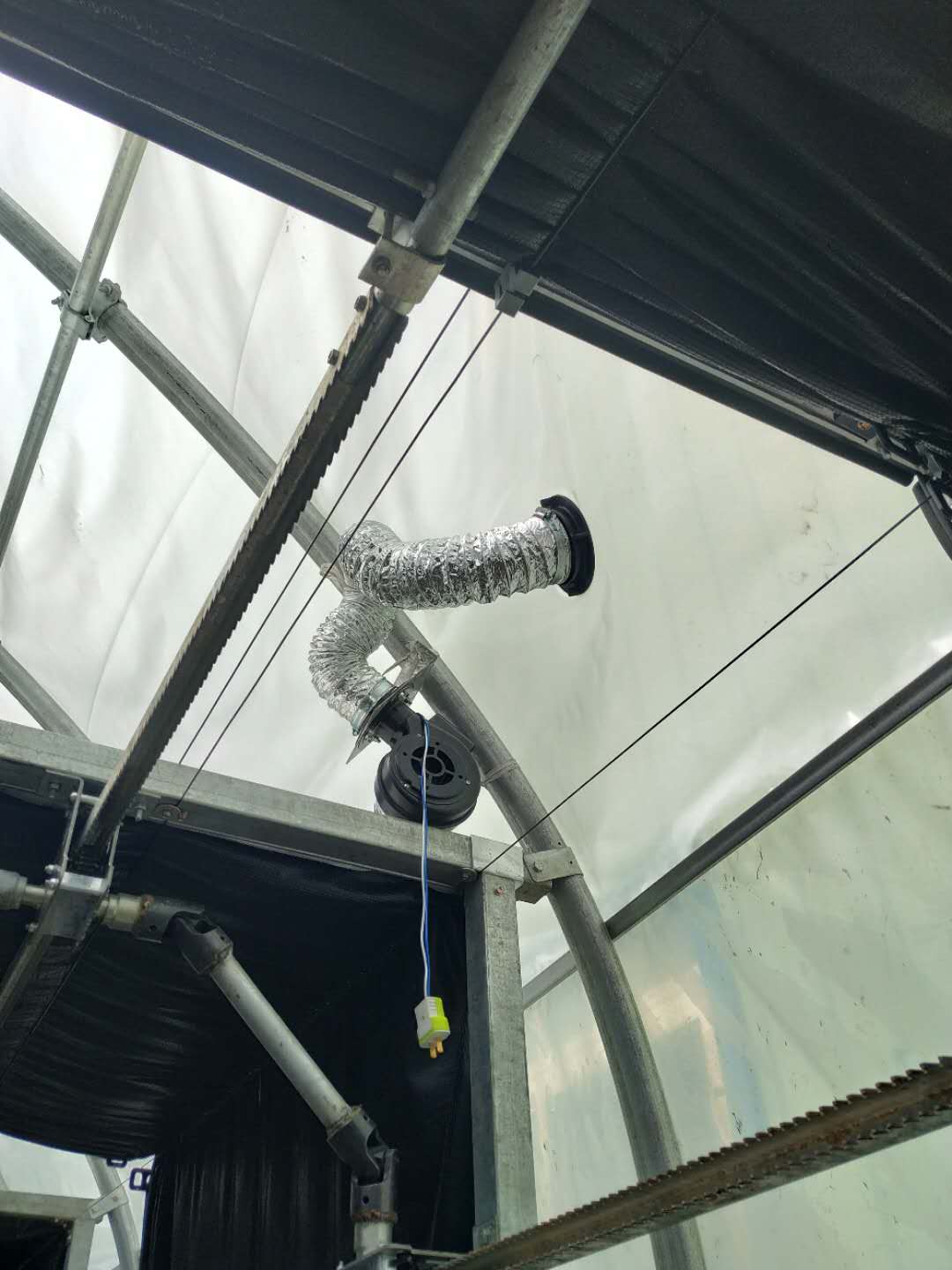

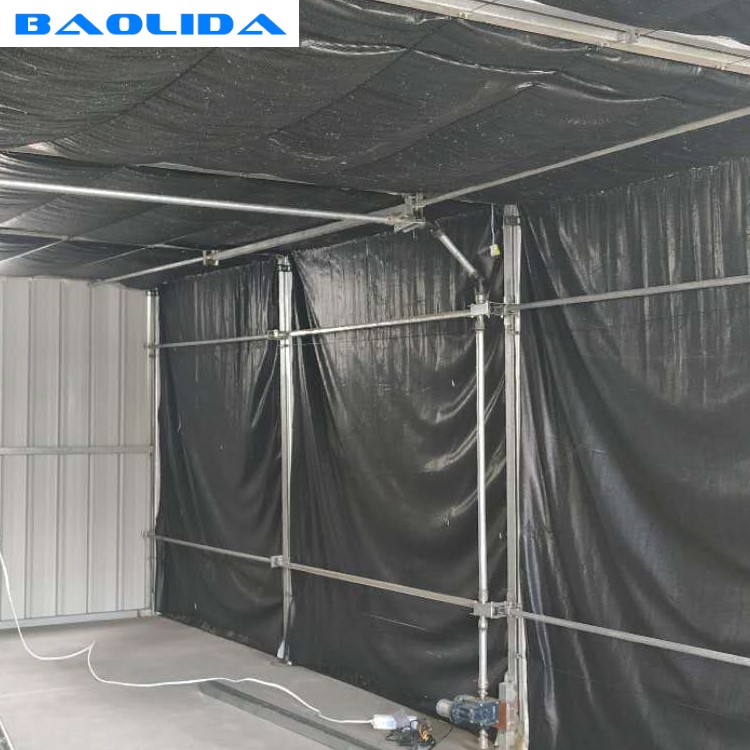

Examples of pictures
1. When can I get the price?
Usually within 24 hours after we get your inquiry. If you are
urgent to get the price, please call me or tell me in the email.
2. Can you accept our own design, logo, and pattern?
We can produce it according to your design.
3. Are you a manufacturer or Trading company?
We are a greenhouse manufacturer in Chengdu China, are greenhouse
manufacturing, and We also welcome you to visit our factory.
4. When can I get the goods?
Produce time is within 15days, and shipping is usually 20-35days.
5. What is your best price?
The same style of greenhouse can be used in different thicknesses
of steel, and different thicknesses of the film. These will have a
direct impact on greenhouse prices. And the larger the area, the
lower the unit price will be
